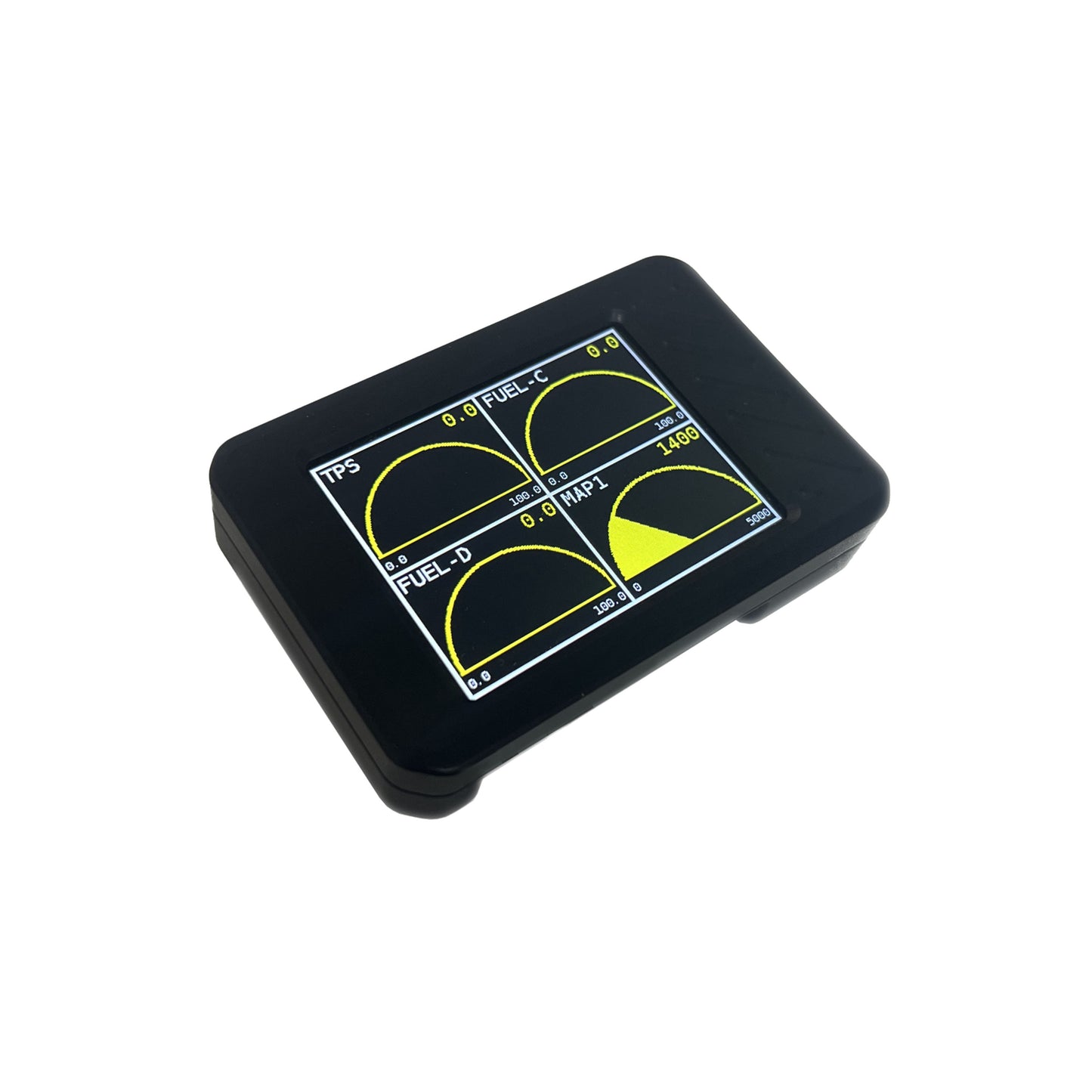

SYVECS TINYDASH V1

The TinyDash is a compact and powerful display designed to offer customers vital real time information from their vehicles electronics.

The palm sized unit has been designed with simplicity in mind and to ensure users a hassle free installation process. It requires only one switched 12v supply along with a two wire CAN bus connection.

Outputs

2 x PWM Outputs - 2Amp Peak (100ms) / 1Amp Continuous

1 x 5V Sensor Supply (400ma Max)

Inputs

3 Analogue/Thermistor Inputs (0-5V) with software pull-up

Interfaces

USB C For Updates and Configuration

1 x CAN 2.0B, user programmable

Power Supply

6 to 26V ignition switched supply

Physical

Harwin Datamate Connector

78mm x 50mm x 20mm

High-quality anodised CNC aluminium body
and military spec wiring (Tyco Spec44) ensures a rigorous and long-term use.
Price
Dhs. 1,550.00
Dhs. 1,550.00
Available In Stock
Hurry, only a few days left! Shop now!

Header after countdown

12 Days
10 Hours
45 Minutes
33 Seconds
14 Days Return Policy
VAT included
Up to 5 Years Warranty
