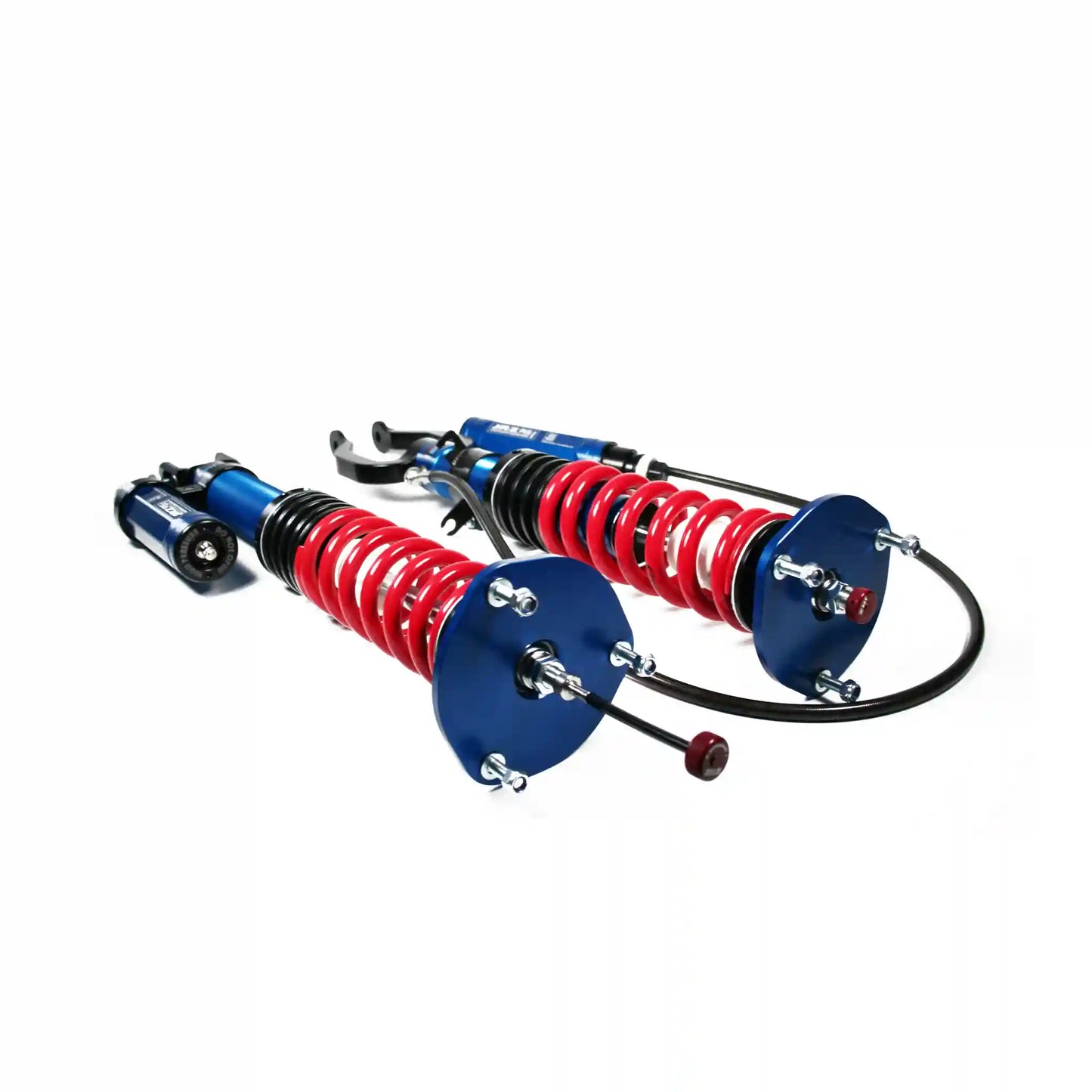

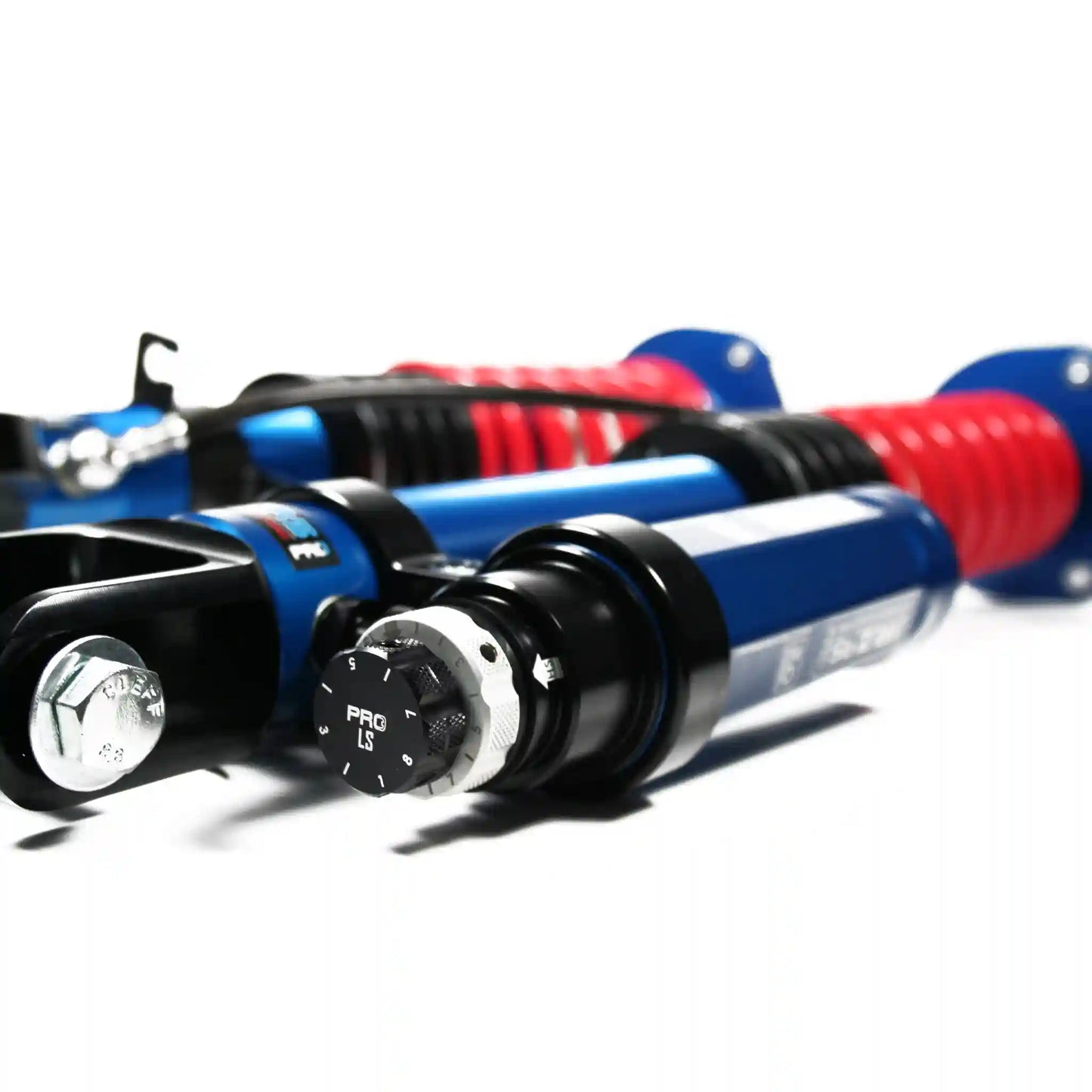

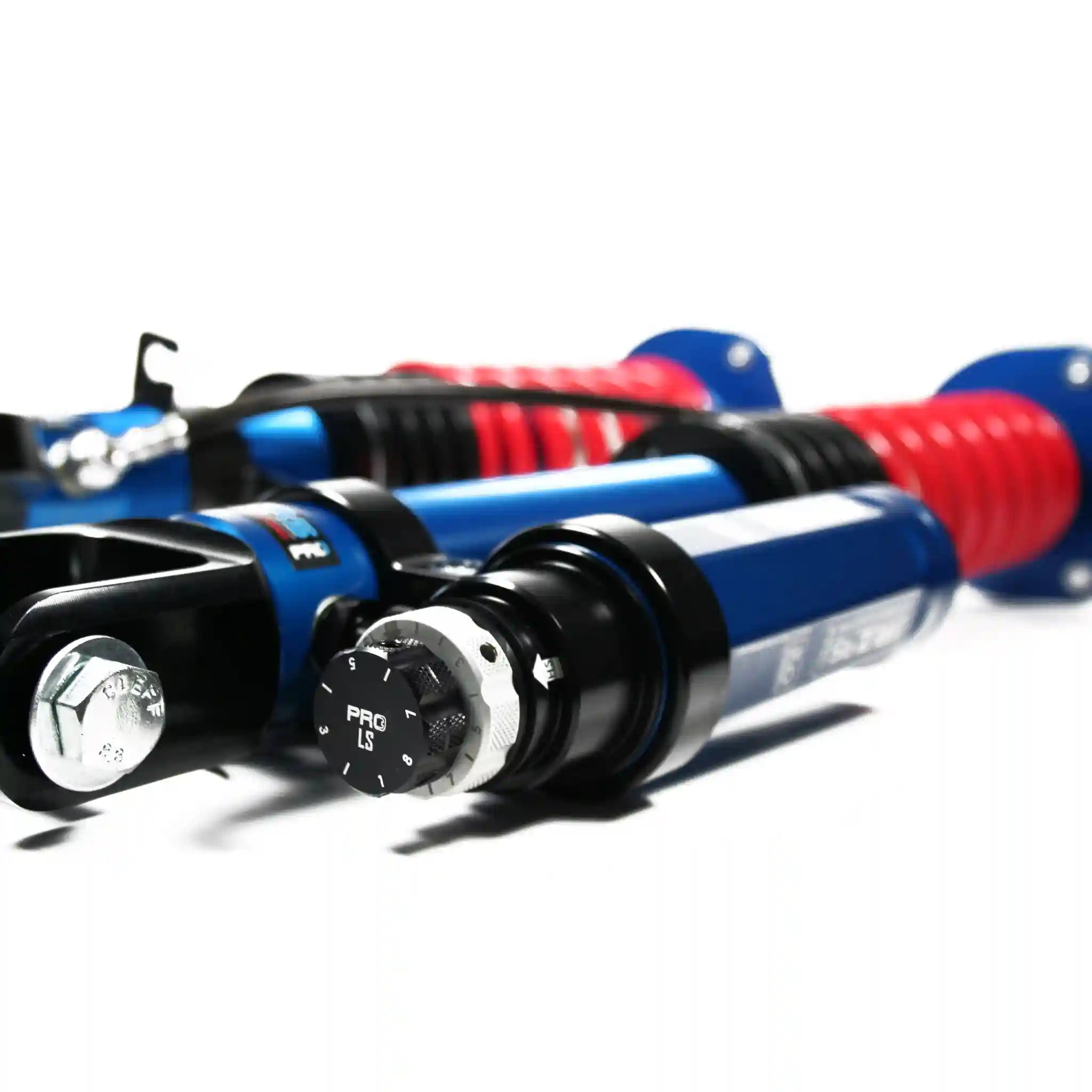

JRZ NISSAN GTR R35 RS-PRO SUSPENSION KIT SZM SPEC - STREET, ROLL RACE SETUP

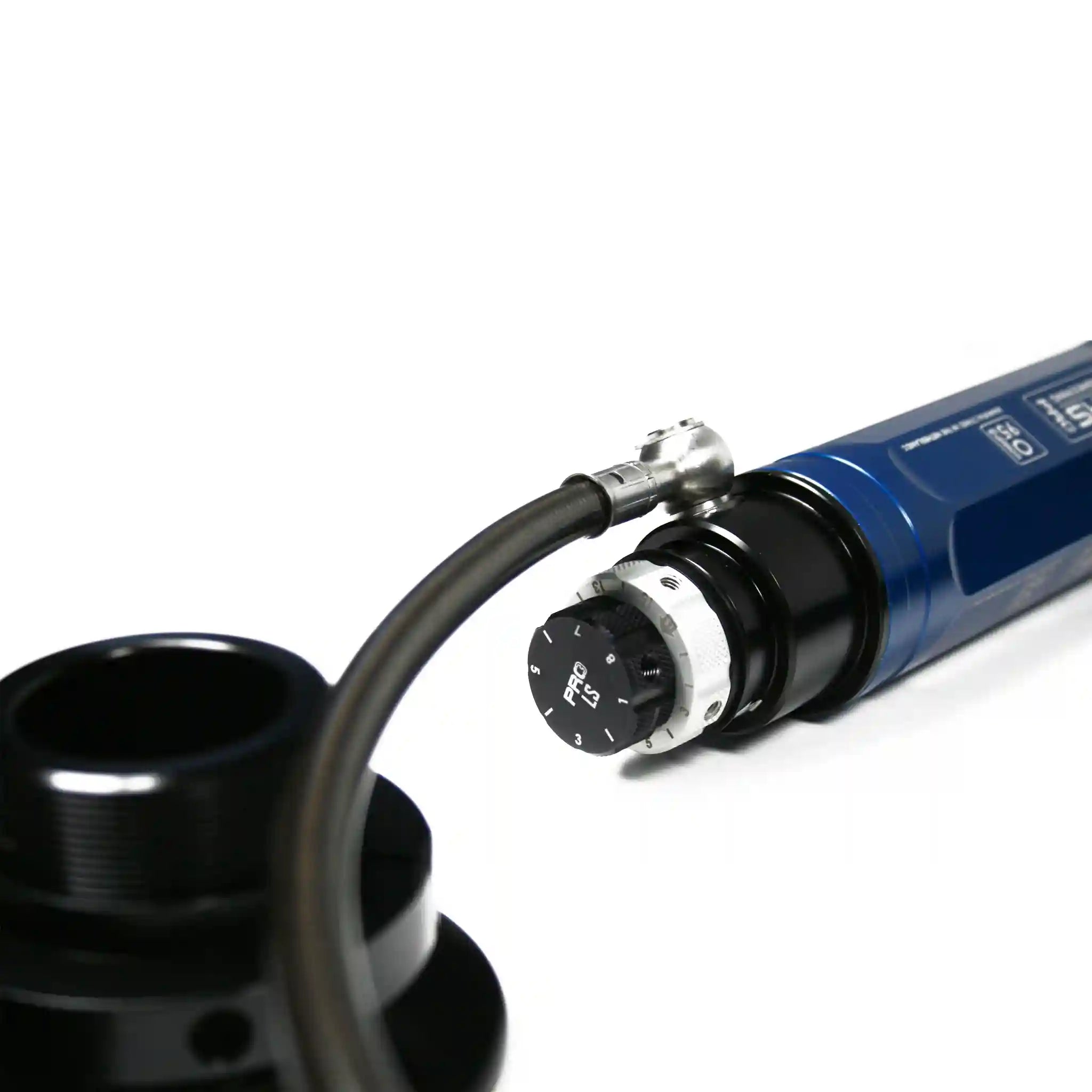

Triple adjustable

Rebound

Compression High speed

Compression Low speed

Race technology

The original 3-way motorsport damper is integrated in the JRZ RS PRO 3 system. The use of large shaft creates an optimum fluid displacement through adjustable blow off valve in compression, to control unsprung mass. A Special designed piston is used to filter out the large, high velocity movements seen with suspensions on street applications.

Compression

Control of the unsprung mass is achieved with our blow off valve. Steering balance and weight transfer rates are tuned with the low speed adjustment. The high speed compression adjustment sets the blow off velocity of the damper, allowing for harshness to be separated from control. Blow off damping settles the car on bumps, curbs, and maximizes grip. Low speed sets the speed at which the blow off valve opens allowing for fine tuning of balance and adjusting for surface conditions.

Strut Coating

Collaborating with a top tier coating firm, JRZ offers cutting edge technology to allow extremely high corrosion resistance in steel strut applications.

Guide Construction

The new shaft bearing construction allows the damper to live a long life in between service without performance fade. Specially designed for longevity and rebuildability.

Bump stops and dust boots

To further increase service life and safe operating ranges specially designed bump stops and dust boots are included.

Bump stops and dust boots

To further increase service life and safe operating ranges specially designed bump stops and dust boots are included.

CNC Machining

The JRZ RS Line dampers uses CNC machined internals that allow precise damping characteristics to be achieved. The JRZ RS is built on the same line as the motorsport line.
