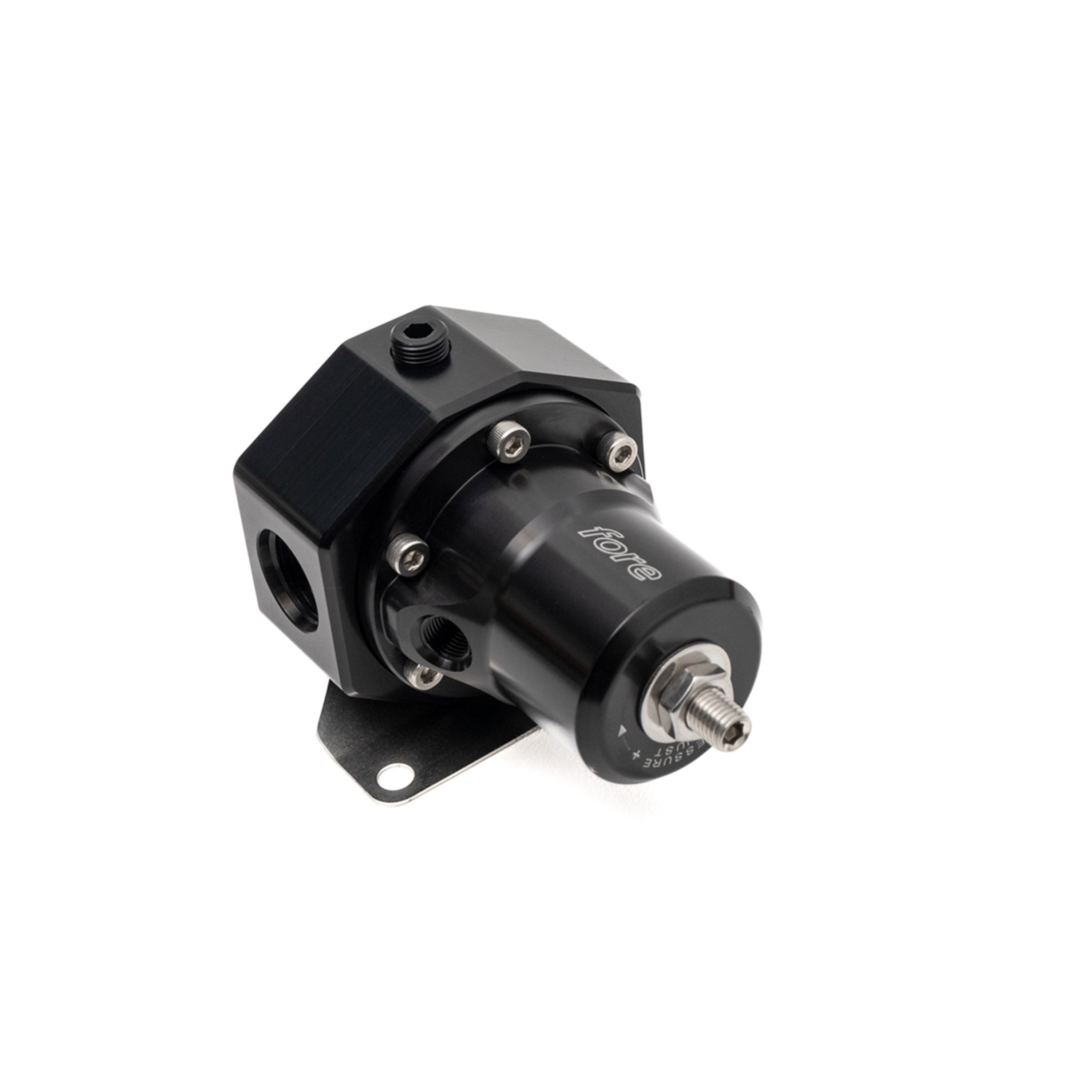

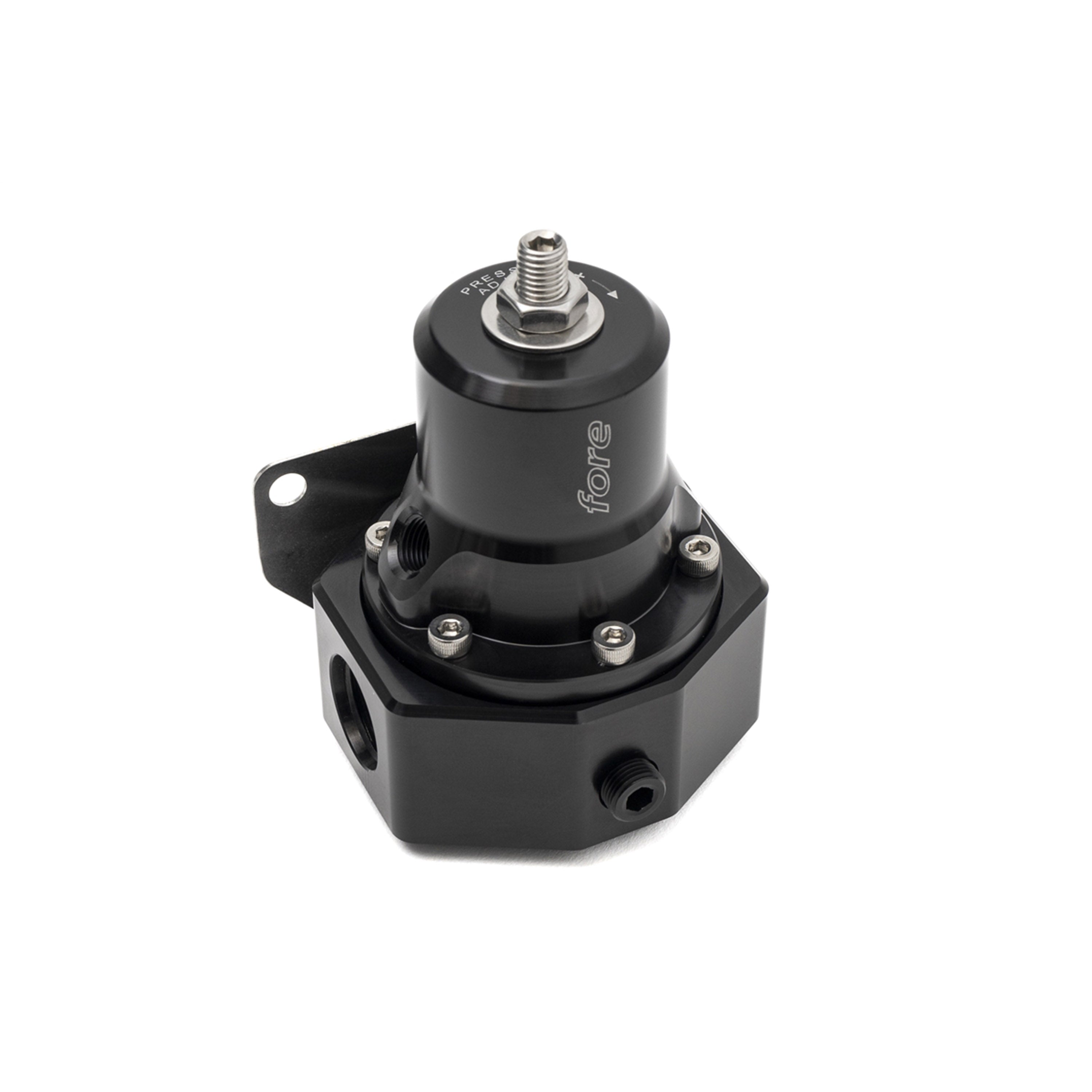

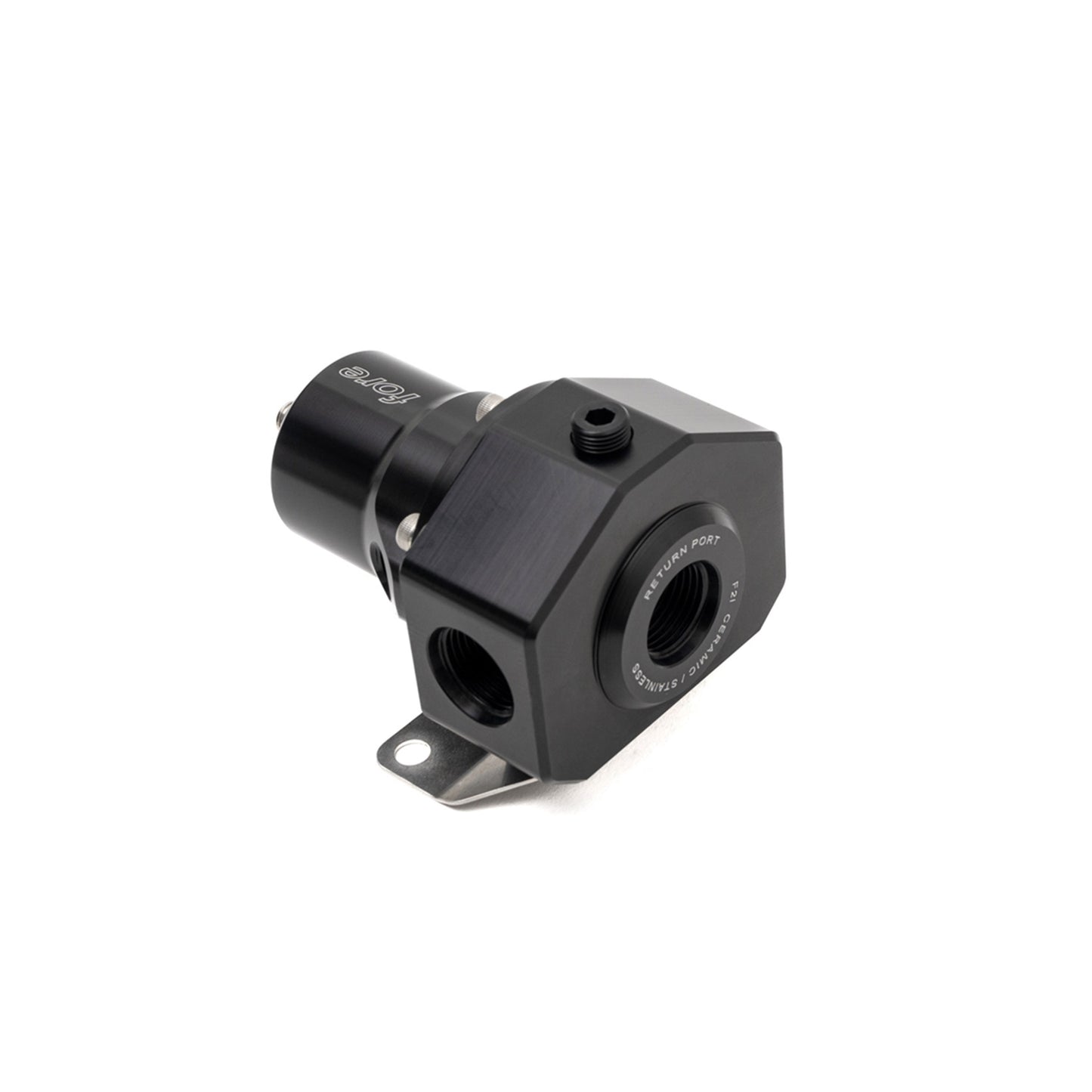

F2I FUEL PRESSURE REGULATOR | FORE INNOVATIONS

SPECIFICATIONS AND FEATURES:

• FORE INNOVATIONS
• 15-201
• Pressure Ports: two ORB-8 female (fitting not included)
• Return Port: ORB-8 female (fitting not included)
• Auxiliary Port: NPT 1/8" female (plug included, PTFE thread sealant required)
• MAP Reference Ports: two NPT 1/8" female (fittings not included)
• Base Pressure range: 25-70 psi
• Boost Limit: 250 psi
• FKM/Nomex composite diaphragm is compatible with gasoline, race gas, ethanol, methanol. MTBE will reduce diaphragm life.
• Not compatible with acetone or brake parts cleaner.
• Hydrodynamic internal cavity suitable for passthrough regulation
• Zero chatter design for maximum life expectancy and maintained accuracy
• Fine Pitch adjustment screw for precise setting of fuel pressure
• Reversible stainless steel mounting bracket included
